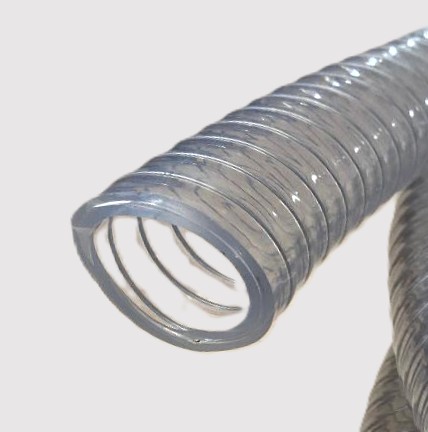

The Clear Tubing with Steel Wire combines a clear PVC wall with a helically wound spring steel wire for kink resistance and shape retention. The clear tube makes it easy to see product moving through the line.
Rated for food contact, this tubing handles working pressures from 35 to 70 PSI in a lightweight, flexible package. It is well suited for food and beverage transfer and general fluid transfer lines.
| Inner Diameter (in.) | Outer Diameter (in.) | Tube Material | Reinforcement | Temp. Range | Working Pressure | Min. Bend Radius | Cover Color | Standard Length | Vacuum Rating | Food Grade |
|---|---|---|---|---|---|---|---|---|---|---|
| 0.75″ | 1.03″ | PVC | Helically Wound Spring Steel Wire | 25F to 150F | 50-70 PSI | 3″ | Clear | Up to 100 ft | N/A | Rated for food contact |
| 1″ | 1.297″ | PVC | Helically Wound Spring Steel Wire | 25F to 150F | 35-70 PSI | Clear | Up to 100 ft | N/A | Rated for food contact |
