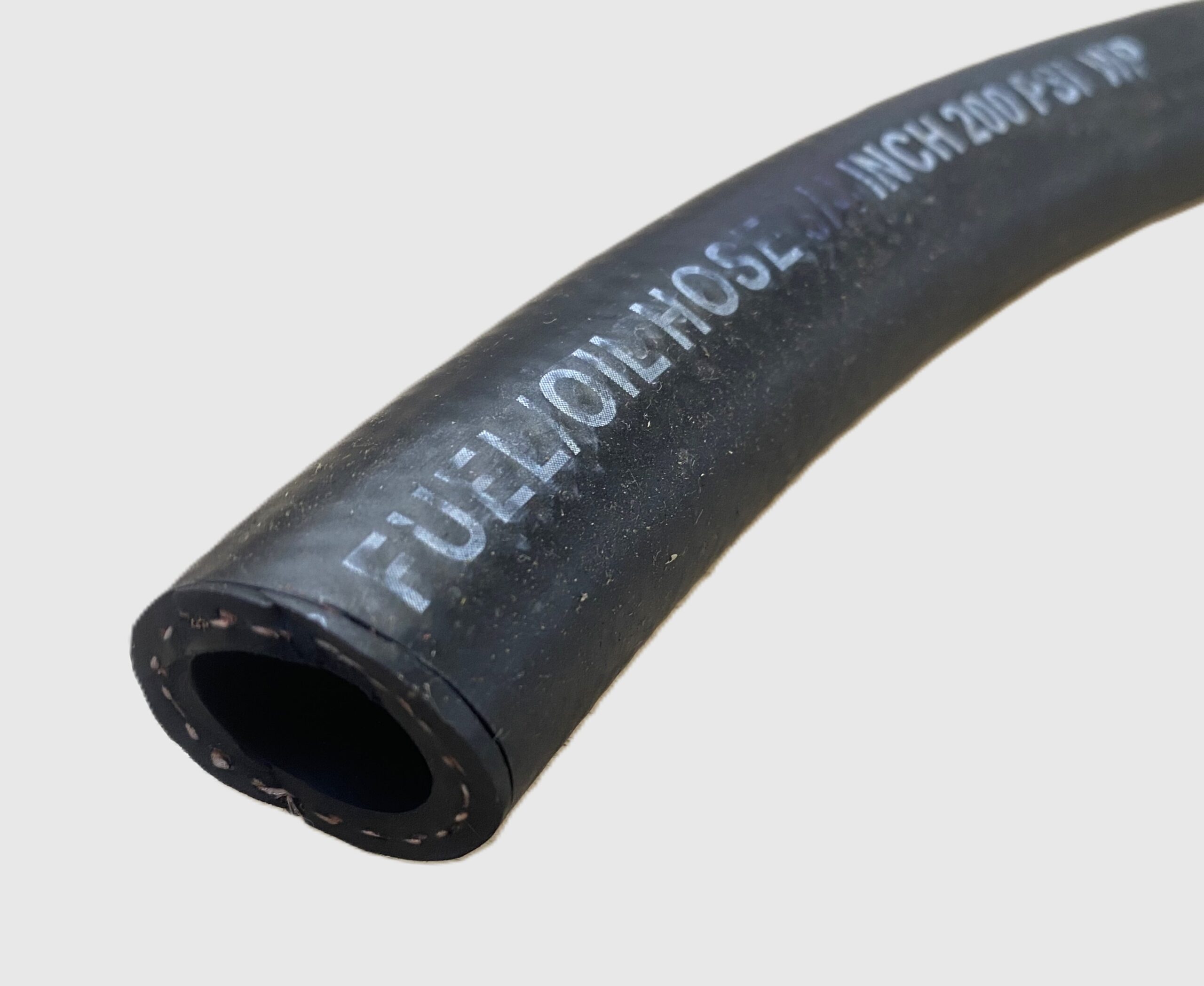

The Fuel Discharge Hose is designed for the discharge and transfer of gasoline, diesel, and other petroleum fuels. Its NBR tube resists fuels and oils, and the SBR/NBR cover holds up to everyday handling.
Multiple textile plies reinforce the hose for a 200 PSI working pressure across a temperature range of -40F to +190F. It is a dependable choice for fuel dispensing, equipment refueling, and fuel transfer service.
| Inner Diameter (in.) | Outer Diameter (in.) | Tube Material | Cover Material | Reinforcement | Temp. Range | Working Pressure | Min. Bend Radius | Cover Color | Weight | Standard Length | Vacuum Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
| .75″ | 1.09″ | NBR | SBR/NBR | multiple textile plies | -40F to +190F | 200 PSI | 6″ | Black | 0.32 lbs/ft | Up to 200 ft | N/A |
| 1″ | NBR | SBR/NBR | multiple textile plies | -40F to +190F | 200 PSI | Up to 200 ft | N/A |
