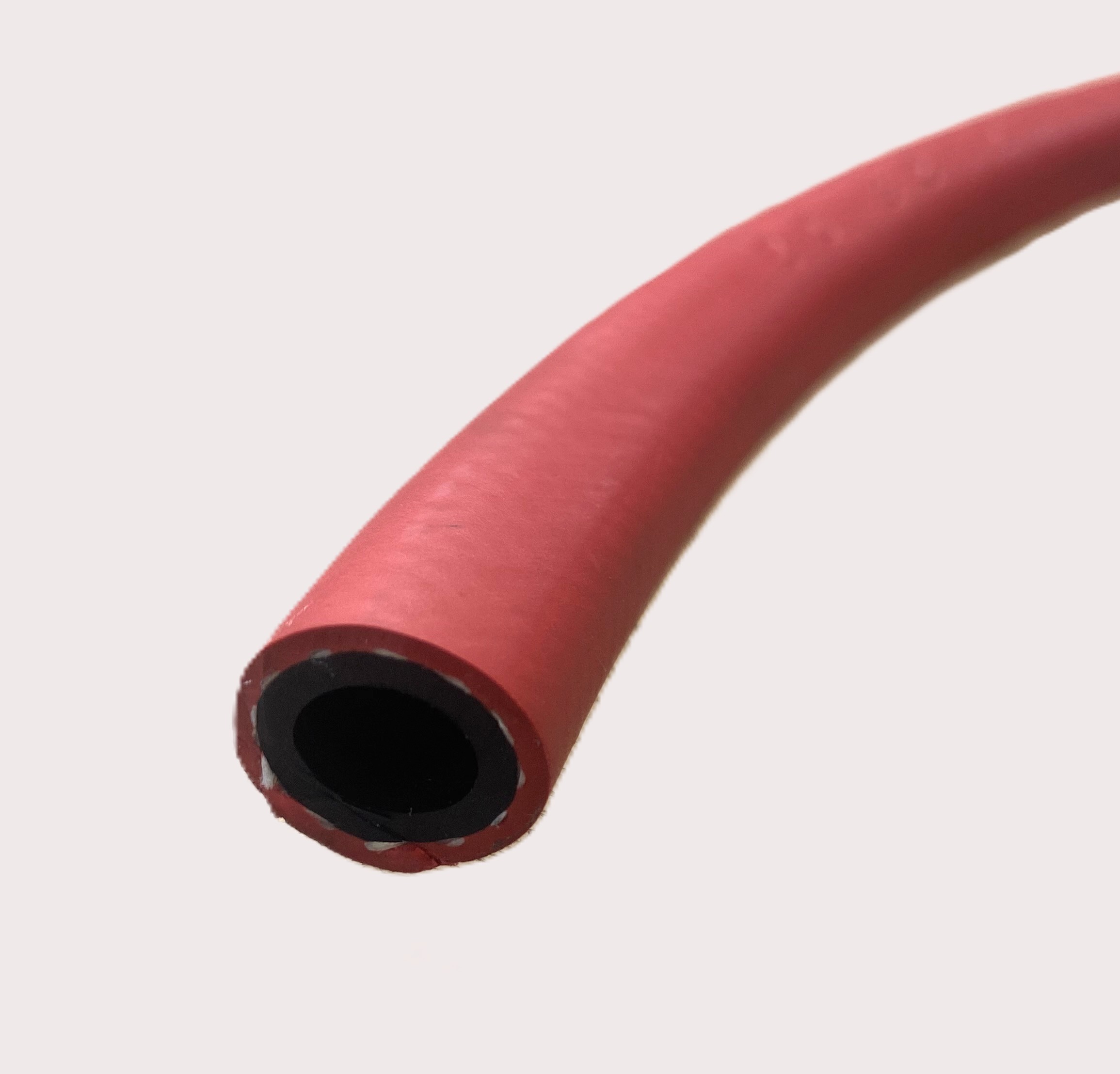

red general purpose hose made from EPDM

General Purpose hose

Contact Us Directly for Immediate Assistance

(254) 666-0099

Inner Diameter (in.) Outer Diameter (in.) Tube Material Cover Material Reinforcement Temp. Range Working Pressure Min. Bend Radius Cover Color Weight Standard Length Vacuum Rating
0.375″ 0.63″ EPDM SBR/EPDM Polyester Yarn -20F to +180F 250 PSI Red Up to 600 ft N/A
0.5″ 0.81″ EPDM EPDM Polyester Yarn -20F to +180F 250 PSI 3″ Red 0.25 Up to 600 ft N/A
0.625″ 0.875″ EPDM EPDM Polyester Yarn -20F to +180F 250 PSI Red Up to 600 ft N/A
0.75″ EPDM EPDM Polyester Yarn -20F to +180F 250 PSI Red Up to 600 ft N/A
1″ 1.5″ EPDM EPDM Polyester Yarn -20F to +180F 300 PSI Red Up to 400 ft N/A
1″ 1.438″ EPDM EPDM Polyester Yarn 250 PSI Red Up to 400 ft N/A
1.25″ 1.75″ EPDM EPDM Polyester Yarn -20F to +180F 200 PSI 9″ Red Up to 300 ft N/A
1.5″ 2.03″ EPDM EPDM Polyester Yarn -20F to +180F 200 PSI 10″ Red 0.84 Up to 250 ft N/A
2″ 2.2″ PVC PVC Polyester Yarn -20F to +180F 150 PSI 14″ Red Up to 200 ft N/A
