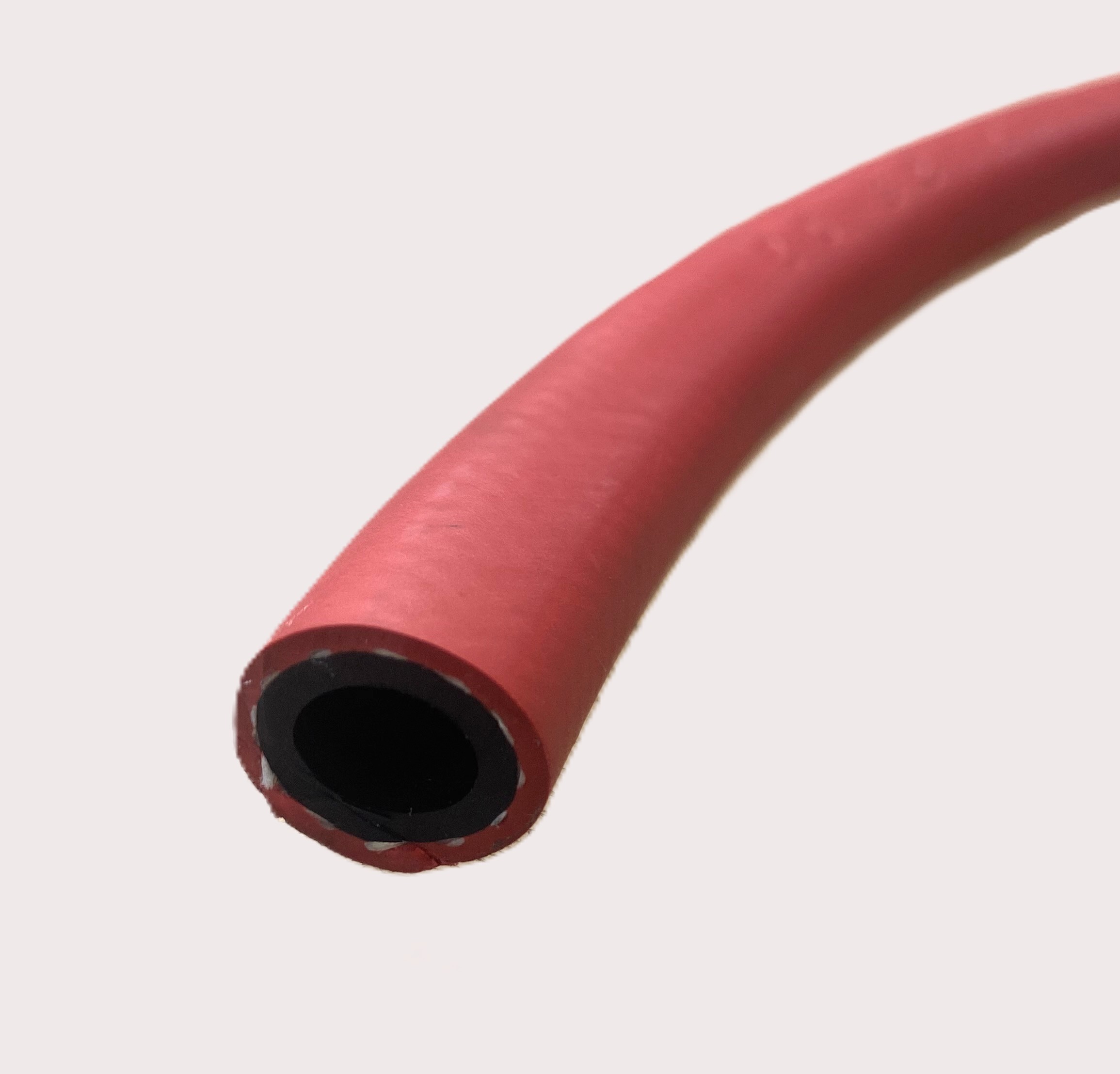

The General Purpose Hose is a versatile hose used across industrial, construction, and maintenance environments for air and water service. It is frequently used for washdown, spray applications, and general utility work.
An EPDM tube with polyester yarn reinforcement provides working pressures up to 300 PSI and a temperature range of -20F to +180F. It offers dependable flexibility and durability for everyday operations where reliable air or water delivery is required.
| Inner Diameter (in.) | Outer Diameter (in.) | Tube Material | Cover Material | Reinforcement | Temp. Range | Working Pressure | Min. Bend Radius | Cover Color | Weight | Standard Length | Vacuum Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.375″ | 0.63″ | EPDM | SBR/EPDM | Polyester Yarn | -20F to +180F | 250 PSI | Red | Up to 600 ft | N/A | ||
| 0.5″ | 0.81″ | EPDM | EPDM | Polyester Yarn | -20F to +180F | 250 PSI | 3″ | Red | 0.25 | Up to 600 ft | N/A |
| 0.625″ | 0.875″ | EPDM | EPDM | Polyester Yarn | -20F to +180F | 250 PSI | Red | Up to 600 ft | N/A | ||
| 0.75″ | EPDM | EPDM | Polyester Yarn | -20F to +180F | 250 PSI | Red | Up to 600 ft | N/A | |||
| 1″ | 1.5″ | EPDM | EPDM | Polyester Yarn | -20F to +180F | 300 PSI | Red | Up to 400 ft | N/A | ||
| 1″ | 1.438″ | EPDM | EPDM | Polyester Yarn | 250 PSI | Red | Up to 400 ft | N/A | |||
| 1.25″ | 1.75″ | EPDM | EPDM | Polyester Yarn | -20F to +180F | 200 PSI | 9″ | Red | Up to 300 ft | N/A | |
| 1.5″ | 2.03″ | EPDM | EPDM | Polyester Yarn | -20F to +180F | 200 PSI | 10″ | Red | 0.84 | Up to 250 ft | N/A |
| 2″ | 2.2″ | PVC | PVC | Polyester Yarn | -20F to +180F | 150 PSI | 14″ | Red | Up to 200 ft | N/A |
