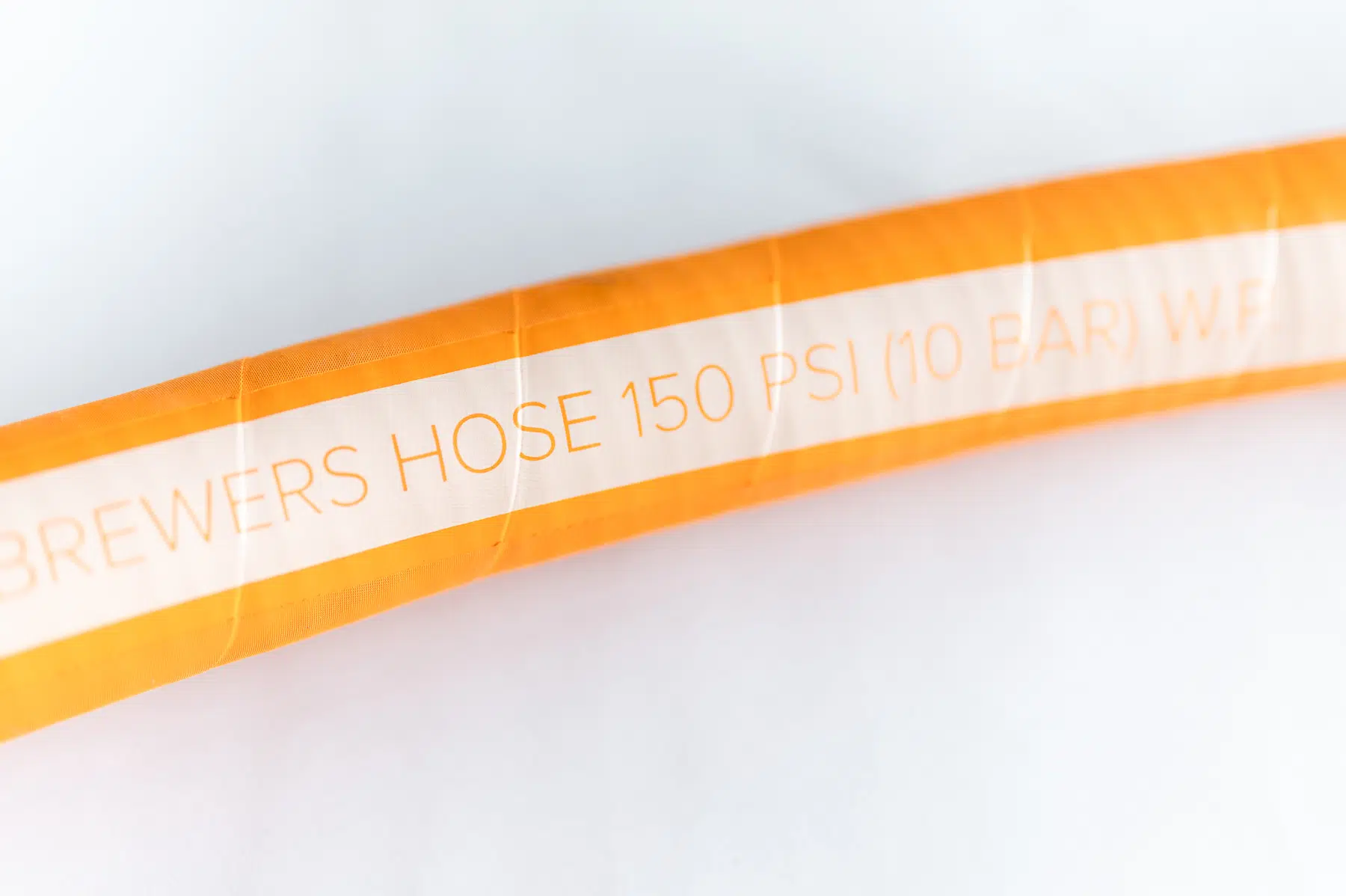

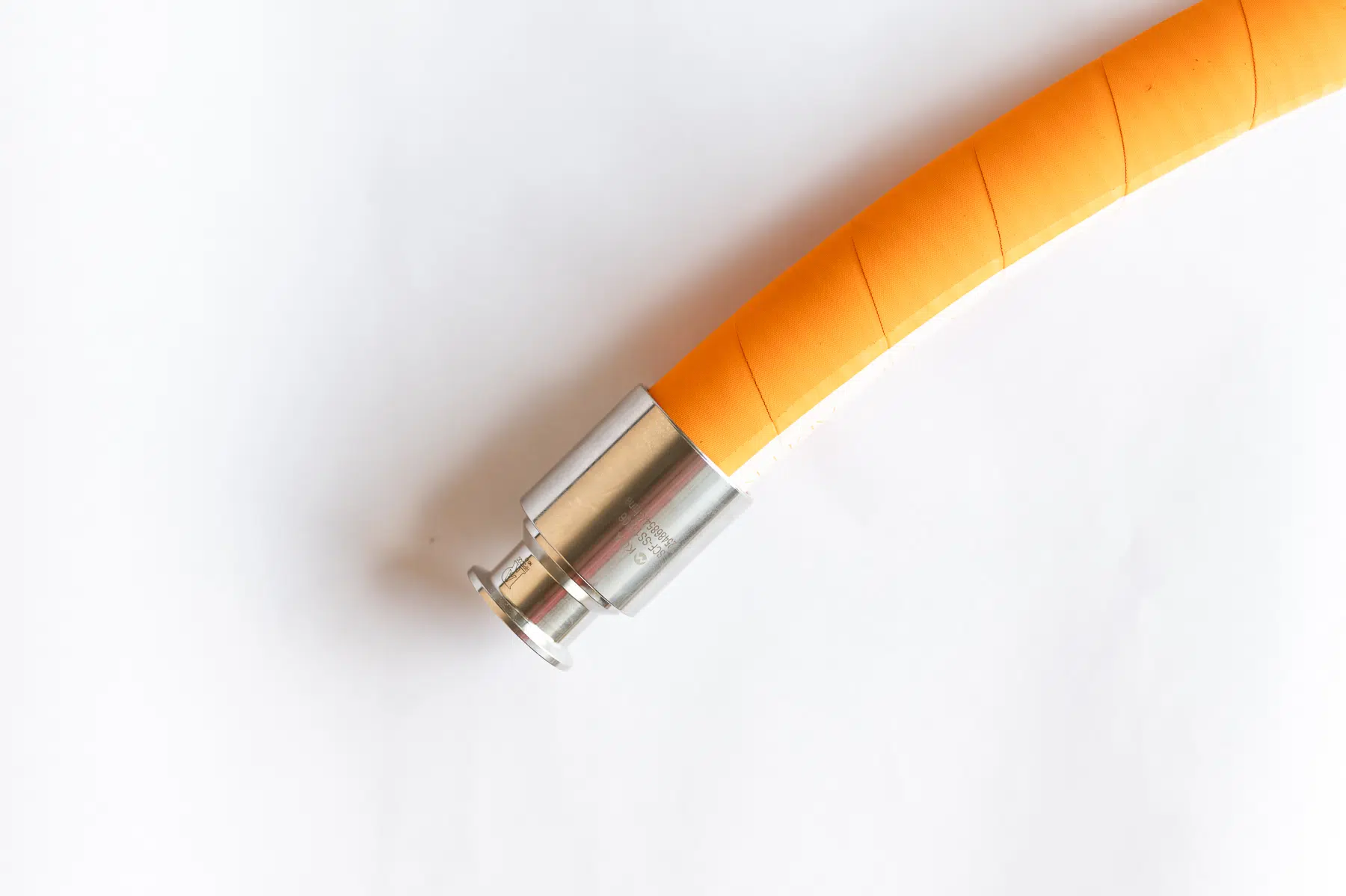

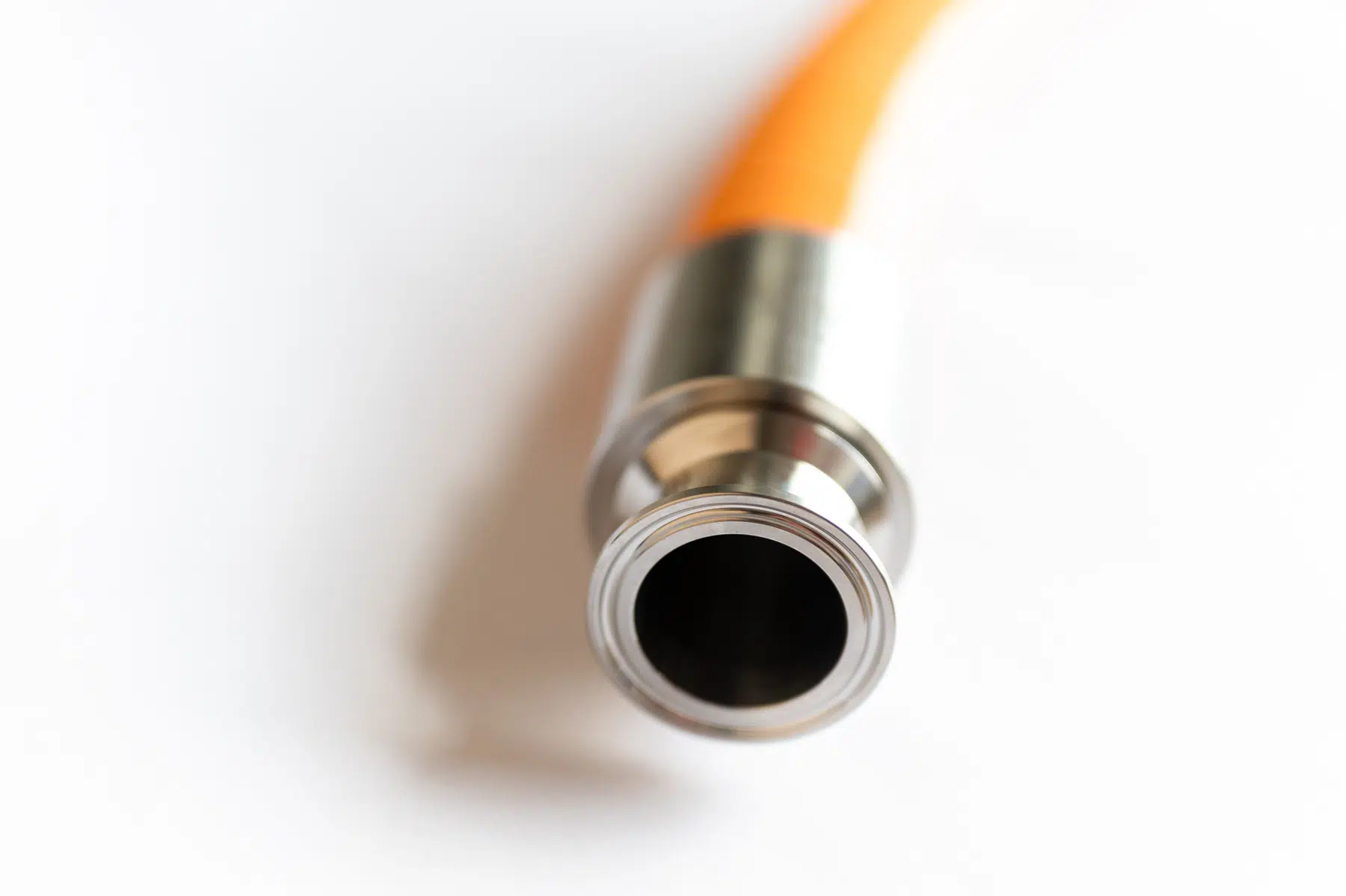

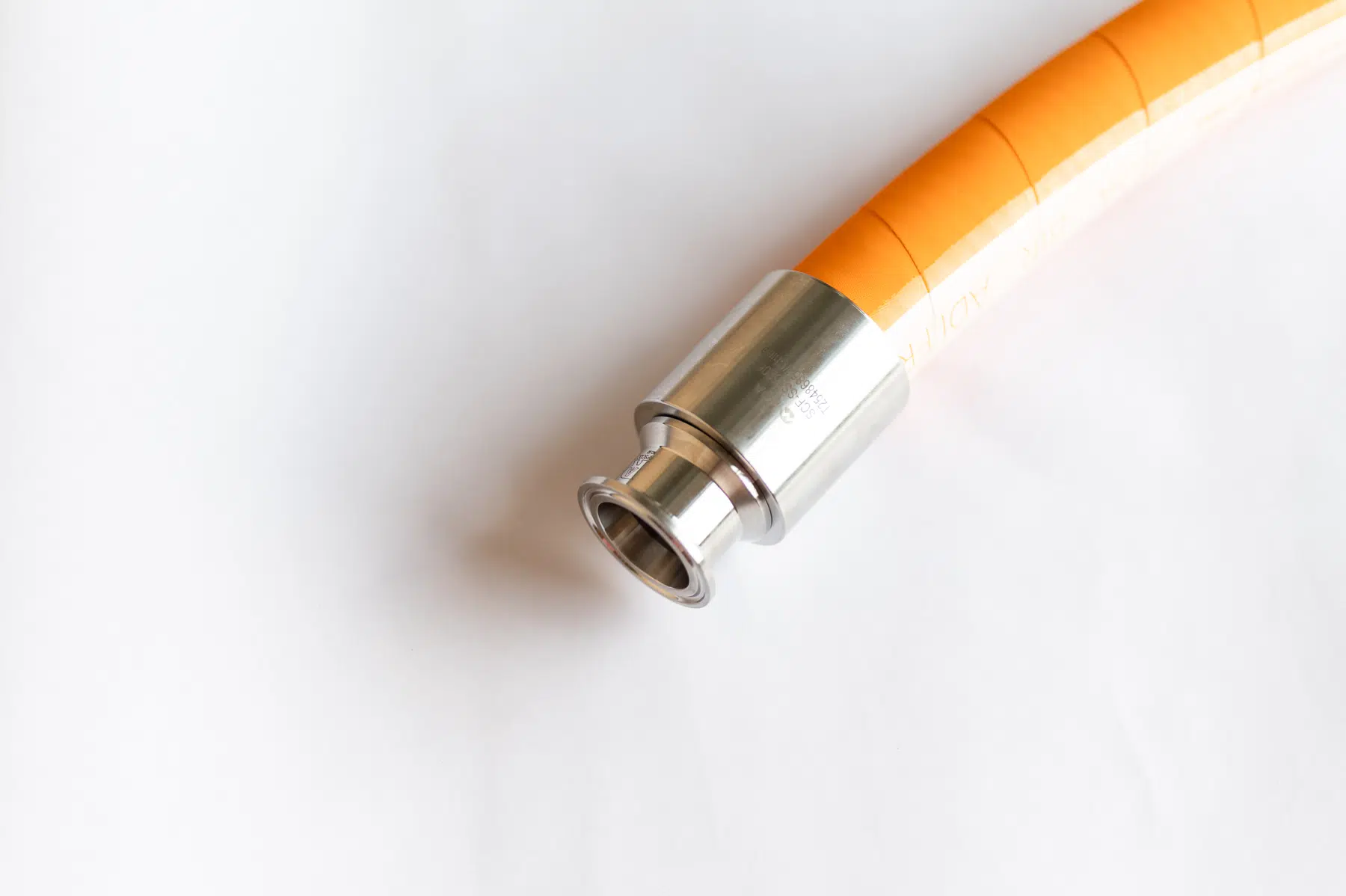

The Food Grade Brewery Hose is designed for the suction and transfer of beer, wine, spirits, soft drinks, and other food grade beverages. Its smooth, white BIIR (butyl) tube is odorless and taste neutral, helping maintain product quality during transfer. While commonly used in breweries and beverage processing, we’ve also supplied this hose for dairy applications.
Reinforced with high strength synthetic plies and a steel helix, GROWLER™ is suitable for both suction and discharge applications. It is steam sterilizable at 230°F for 30 minutes and meets FDA requirements for liquid food applications.
Applications
- Breweries
- Wineries
- Distilleries
- Beverage processing
- Dairy processing
- Food grade liquid transfer
| Inner Diameter (in.) | Outer Diameter (in.) | Tube Material | Cover Material | Reinforcement | Temp. Range | Working Pressure | Min. Bend Radius | Cover Color | Standard Length | Vacuum Rating | Food Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4″ | 1 14/64″ | White, BIIR (Butyl) | EPDM | High strength synthetic plies with steel helix | -40F to +248F | 150 PSI | 1.5″ | Orange | 100 ft | 29 | FDA, USDA Compliant |
| 1″ | 1 29/64″ | White, BIIR (Butyl) | EPDM | High strength synthetic plies with steel helix | -40F to +248F | 150 PSI | 1.75″ | Orange | 100 ft | 29 | FDA, USDA Compliant |
| 1-1/4″ | 1 47/64″ | White, BIIR (Butyl) | EPDM | High strength synthetic plies with steel helix | -40F to +248F | 150 PSI | 3″ | Orange | 100 ft | 29 | FDA, USDA Compliant |
| 1-1/2″ | 1 62/64″ | White, BIIR (Butyl) | EPDM | High strength synthetic plies with steel helix | -40F to +248F | 150 PSI | 4″ | Orange | 100 ft | 29 | FDA, USDA Compliant |
| 2″ | 2 33/64″ | White, BIIR (Butyl) | EPDM | High strength synthetic plies with steel helix | -40F to +248F | 150 PSI | 6″ | Orange | 100 ft | 29 | FDA, USDA Compliant |
| 2-1/2″ | 3 10/64″ | White, BIIR (Butyl) | EPDM | High strength synthetic plies with steel helix | -40F to +248F | 150 PSI | 7″ | Orange | 100 ft | 29 | FDA, USDA Compliant |
| 3″ | 3 45/64″ | White, BIIR (Butyl) | EPDM | High strength synthetic plies with steel helix | -40F to +248F | 150 PSI | 9″ | Orange | 100 ft | 29 | FDA, USDA Compliant |
